A05GSHO 205 Posted March 11 Share Posted March 11 I'll be snowchecking a MY22 650 XCR 136 tomorrow. Question my last Poo, 2020 850 Indy XC 850 137, I put .375 torsion springs on it. Looks like the part# changed????? I see when I build a MY22 XCR the part numbers are Extra Heavy 2884975 and heavy 2884974. Which are what? are the 975's .405 and the 974's .375's????????? Quote Link to post Share on other sites
Bontz 473 Posted March 11 Share Posted March 11 I need to look at this closer, but I kept my HD springs from my VR1 that I had PLANNED to use this past season. I think the HD's are the .375's from what I remember and the XHD are the .405's. I've got too much going on this AM to go look but I'll try to confirm ASAP Quote Link to post Share on other sites
A05GSHO 205 Posted March 11 Author Share Posted March 11 Looking out there when you build a 22 XCR the extra heavy is part# 2884975 and the heavy is 2884974 either of which tell you if their .375's or .405's. I'm assuming its a kit with those part #. When I look at the 2021 torsion #'s they are used on the 2022 XCR, but they come up .375 for one and .375s for the other, if I remember correctly. I'll be at the dealer tomorrow morning and I'll get the low down then. 1 Quote Link to post Share on other sites
Tut Tune Up 7 Posted March 18 Share Posted March 18 I bought a pair of HD springs for my VR1 850 this year and installed them rite away and rode about 4 or 500 miles on them and ended up taking them out, it rode like a dump truck, when I took them out it was fine even with my cam on medium, I had my rear blocks on high so maybe that helped, I had all the shocks on stock settings too, 2021 VR1 137 850 1 Quote Link to post Share on other sites
Bontz 473 Posted March 18 Share Posted March 18 2 minutes ago, Tut Tune Up said: I bought a pair of HD springs for my VR1 850 this year and installed them rite away and rode about 4 or 500 miles on them and ended up taking them out, it rode like a dump truck, when I took them out it was fine even with my cam on medium, I had my rear blocks on high so maybe that helped, I had all the shocks on stock settings too, 2021 VR1 137 850 Hey ... good to see ya Tut!! Just curious ... would you weigh greater than 250 but less than 300 pounds (if you don't mind me asking)? I'm interested because I had actually purchased the HD springs too, but never got a chance to use them on my VR1 and kept them around after selling it in January. Quote Link to post Share on other sites
Tut Tune Up 7 Posted March 18 Share Posted March 18 16 minutes ago, Bontz said: Hey ... good to see ya Tut!! Just curious ... would you weigh greater than 250 but less than 300 pounds (if you don't mind me asking)? I'm interested because I had actually purchased the HD springs too, but never got a chance to use them on my VR1 and kept them around after selling it in January. Bontz I'm 350 all day, I needed them on last years indy 137 but not this years 137, I do bottom out once in awhile but you should if you want it to ride smooth on the studder bumps ,I ride mostly groomed trails anyway but never had a problem in the rough stuff after I took them out, the velocity shocks made a big difference this year is my thinking 1 Quote Link to post Share on other sites
Tut Tune Up 7 Posted March 18 Share Posted March 18 I bought an XCR this year and didn't have to change springs in it either if that helps 1 Quote Link to post Share on other sites
SayatodaU.P.eh? 658 Posted March 18 Share Posted March 18 Going with the .375’s at a minimum on the ‘21 Indy 137 that I’m getting. The velocity shocks make a HUGE difference even over the Walkers, from what I’ve felt riding a sled with both. Hoping I can limp along the Polaris IFPs that are on this Indy for a year or so. Going to have the oil changed in the rears when I put the springs in. Quote Link to post Share on other sites
SayatodaU.P.eh? 658 Posted March 18 Share Posted March 18 So if someone gets the chance to decipher which p/n is which thickness spring, that would be great. Quote Link to post Share on other sites
Crnr2Crnr 431 Posted March 18 Share Posted March 18 1 hour ago, SayatodaU.P.eh? said: So if someone gets the chance to decipher which p/n is which thickness spring, that would be great. see #14 for your sled https://www.babbittsonline.com/oemparts/a/pol/60073ea787a8661ed4786a6b/suspension-torque-arm-rear fwiw in the Axys XCR for 'terrain' (98% positive the 2019 XC had the same suggested parts and settings) Suspension Springs: IFS: 125lbs/in coil over spring 10” x 2.25”I.D. (#7045096-458) Front track: 90/280lb/in coil over spring 8” x 2.25”I.D. (*Stock) Rear torsion: 13lin/lbs@80degree torsion springs 7045208-329 & 7045207-329 Suspension spring preloads: .500” preload on IFS spring, .325” preload on front track spring, Medium/Low on torsion spring preload blocks https://cdn1.polaris.com/globalassets/snow/root/team-polaris/racer-resources/cross-contry/setup-information/2020-600-indy-xcr-cross-country-terrain-racing-set-up-sheet.pdf?v=75e16129 Quote Link to post Share on other sites

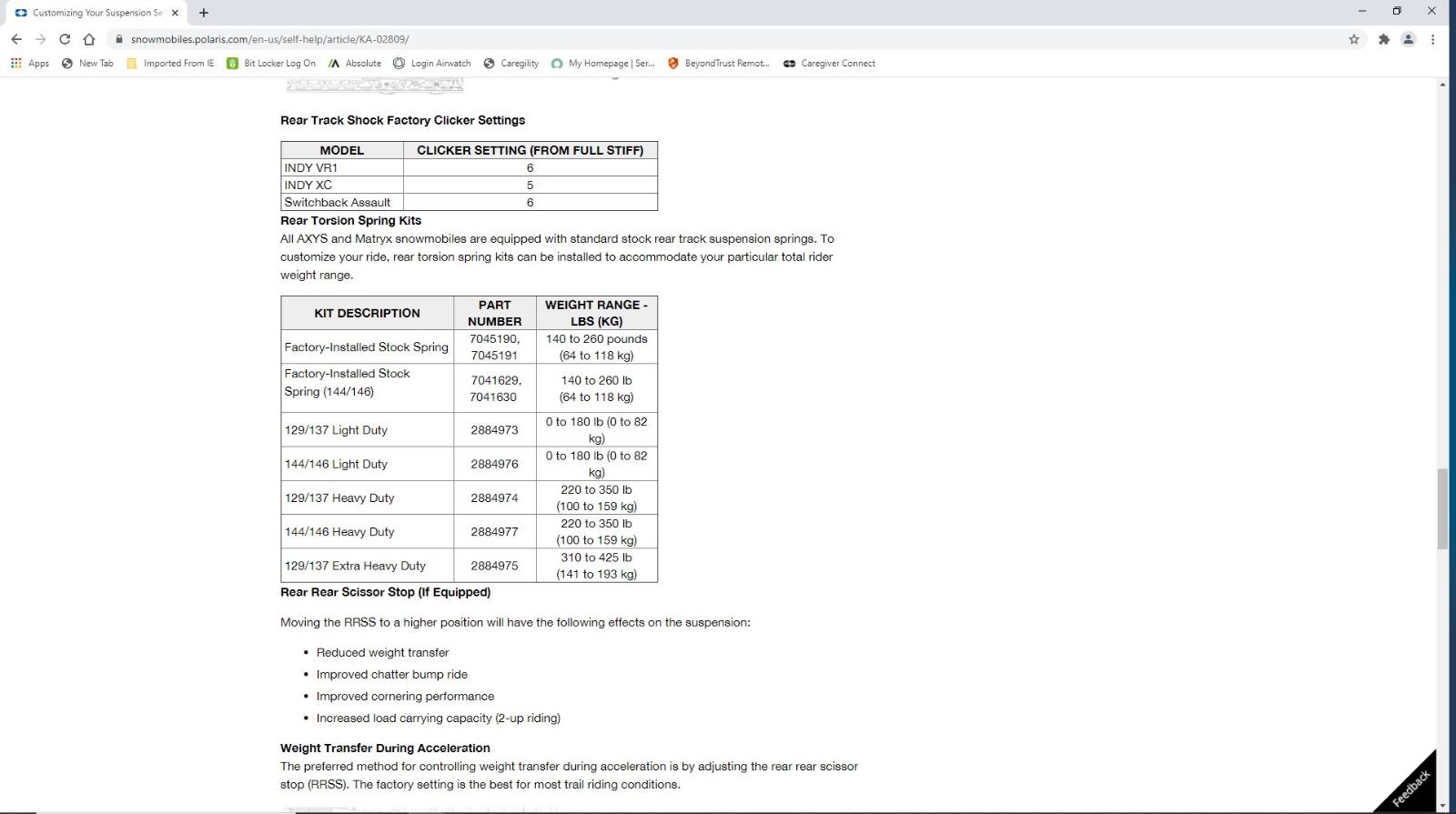

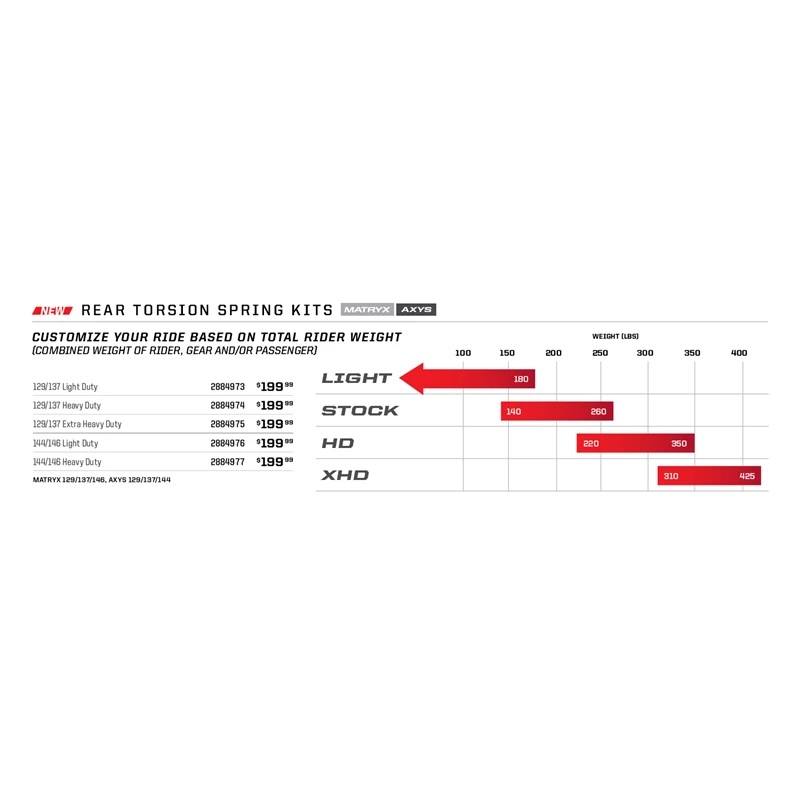

A05GSHO 205 Posted March 18 Author Share Posted March 18 (edited) I ended up going with the HD torsion springs, part# 2884974 when you build the XCR on line, when I ordered my XCR. I specified to the dealer I wanted the .375's he not only called their parts dept at that dealership but also their parts dept at their other store. I was told the 2884974's, kit part# are the .375's, I go 300lbs OK I'm confused as fuck here. The attached says the 2884974's are stock when you look up that part number on the Polaris website and the 2884976 are rated for riders 220-350 WTF? Two conflicting charts from Polaris attached. Edited March 18 by A05GSHO Quote Link to post Share on other sites
A05GSHO 205 Posted March 18 Author Share Posted March 18 Part# Pro-CC Matryx INDY Description Driver Weight Range - - - - - - - - - - - - - - - - - - - 2884973 Kit Light Duty up to 180 lb. Sq .347 Sq .359/80 7045190-329 7045191-329 - LH Standard RH Standard 140 to 260 lb. 2884974 Kit Heavy Duty 220 to 350 lb. Sq .375/80 7045207-329 7045208-329 - LH RH 2884975 Kit Extra Heavy duty 310 to 425 lb. Sq .375/70 7045209-329 7045210-329 - LH RH https://snowmobiles.polaris.com/en-us/shop/accessories/shocks-suspension/2884973/ 2884973 LightDuty Torsion Springs $200US/pr avail. AXYS/MATRYX 129/137 Indy (Pro-CC) Rider Weight upto 180 lb.[/B] stock Rider Weight 140 to 260 lb. https://snowmobiles.polaris.com/en-us/shop/accessories/shocks-suspension/2884974/ 2884974 HeavyDuty Torsion Springs $200US/pr avail. AXYS/MATRYX 129/137 Indy (Pro-CC) Rider Weight 220-350 lb.[/B] Rear Torsion Spring Kit - 129/137 - Extra Heavy Duty | Polaris Snowmobiles Feel the unique rhythm of every trail with this Extra Heavy Duty Spring Kit. These heavy duty springs Quote Link to post Share on other sites
Bontz 473 Posted March 18 Share Posted March 18 Looks like an ExcursionPSD type of post Thanks George Quote Link to post Share on other sites
A05GSHO 205 Posted March 18 Author Share Posted March 18 49 minutes ago, Bontz said: Looks like an ExcursionPSD type of post Thanks George That would be correct. Public information even for those that are banned. 1 Quote Link to post Share on other sites
SayatodaU.P.eh? 658 Posted March 19 Share Posted March 19 So looks like I’ll be going HD with the shock oil upped one weight. Pretty much like I always do. Quote Link to post Share on other sites
A05GSHO 205 Posted March 19 Author Share Posted March 19 Got this email response from Polaris as well. Polaris PGA Customer Experience Thu, Mar 18, 5:33 PM (10 hours ago) to me We do apologize. Not all the 2022 snow check information is readily available. Kit 2884974 contains: 7045207-329 1.000 EA SPRING-TOR,.375S,80,13#,LH BLK 7045208-329 1.000 EA SPRING-TOR,.375S,80,13#,RH BLK Quote Link to post Share on other sites
SayatodaU.P.eh? 658 Posted March 19 Share Posted March 19 3 hours ago, A05GSHO said: Got this email response from Polaris as well. Polaris PGA Customer Experience Thu, Mar 18, 5:33 PM (10 hours ago) to me We do apologize. Not all the 2022 snow check information is readily available. Kit 2884974 contains: 7045207-329 1.000 EA SPRING-TOR,.375S,80,13#,LH BLK 7045208-329 1.000 EA SPRING-TOR,.375S,80,13#,RH BLK See parts catalog shows those at the .375/80’s for my sled which would be the heaviest spring offered. The 7045209-329’s are the .375/70’s. Second number should be the angle difference, in degrees of course, between the two ends of the spring. Quote Link to post Share on other sites
Bontz 473 Posted March 19 Share Posted March 19 Glad to see you e-mailed (and got a response back from) Polaris. One of my biggest concerns this time of the year is what's correct & what isn't when it comes to their online parts info. Even their owner's manuals have been known to contain wrong (old) information. I can't remember if it was my 2015 or my 2016, but one of them I remember looking at something in the owner's manual and it was clearly a "carry over" item from the Pro-Ride chassis and was WRONG. Hopefully they've given a bit more focus on simple stuff like that. Quote Link to post Share on other sites
